ENR 1.14 AIR TRAFFIC INCIDENTS
1 DEFINITION OF AIR TRAFFIC INCIDENTS
1.1 “Air traffic incident” is used to define a serious occurrence related to the provision of air traffic services, such as:
- Aircraft proximity (AIRPROX),
- serious difficulty resulting in a hazard to aircraft caused, for example, by:
- faulty procedures,
- non-compliance with procedures, or
- failure of ground facilities.
Definitions for aircraft proximity and AIRPROX.
Aircraft proximity
A situation in which, in the opinion of the pilot or the air traffic services personnel, the distance between aircraft, as well as their relative positions and speed, has been such that the safety of the aircraft involved may have been jeopardised. Aircraft proximity is classified as follows:
Risk of collision
The risk classification of aircraft proximity in which serious risk of collision has existed.
Safety not assured
The risk classification of aircraft proximity in which the safety of the aircraft may have been jeopardised.
No risk of collision
The risk classification of aircraft proximity in which no risk of collision has existed.
Risk not determined
The risk classification of aircraft proximity in which insufficient information is available to determine the risk involved, or inconclusive or conflicting evidence precludes such determination.
AIRPROX
The code word used in an air traffic incident report to designate aircraft proximity.
1.2 Air traffic incidents are designated and identified in reports as follows:
TYPE | DESIGNATION |
---|
Air traffic incident | Incident |
as a) above | AIRPROX (aircraft proximity) |
as b) 1) and 2) above | Procedure |
as b) 3) above | Facility |
2 USE OF THE “AIR TRAFFIC INCIDENT REPORT FORM” (See model on Fig. 1)
The “Air Traffic Incident Report Form” is intended to be used:
- by a pilot for filing a report on an air traffic incident after arrival or for confirming a report made initially by radio during the flight.
Note. | The form, if available on board, may also be used in providing a pattern for making the initial report in flight. |
- by an ATS unit for recording an air traffic incident report received by radio, telephone or fax.
Note. | The form may be used as the format for the text of a message to be transmitted over the AFS network. |
3 REPORTING PROCEDURES (INCLUDING INFLIGHT PROCEDURES)
3.1 The following are the procedures to be followed by a pilot who is or has been involved in the incident:
- during flight, to use the appropriate air/ground frequency for reporting an incident of major significance, particularly if it involves other aircraft, so as to permit the facts to be ascertained immediately;
- as promptly as possible after landing, to submit a completed “Air Traffic Incident Report Form”:
- for confirming a report of an incident made initially as in a) above, or for making the initial report on such an incident if it was not possible to report it by radio,
- for reporting an incident which did not require immediate notification at the time of occurrence.
3.2 An initial report made by radio should contain the following information:
- aircraft identification;
- type of incident, e.g. aircraft proximity;
- the incident: 1. a) and b); 2. a), b), c), d), n); 3. a), b), c), i); 4. a), b);
- miscellaneous: 1. e).
3.2 The confirmatory report on an incident of major significance initially reported by radio or the initial report on any other incident should be submitted to Civil Aviation Department of Transport Competency Agency. For contact details see GEN 1.1.
or to the Vilnius ARO of the aerodrome of first landing for submission to Lithuanian Transport Safety Administration. The pilot should fill in the “Air Traffic Incident Report Form”, supplementing the details of the initial reports as necessary.
4 PURPOSE OF REPORTING AND HANDLING OF THE FORM
4.1 The aim of the reporting of aircraft proximity incidents and their investigation is to promote the safety of aircraft. The degree of risk involved in an aircraft proximity incident should be determined in the incident investigation and classified as “risk of collision”, “safety not assured”, “no risk of collision” or “risk not determined”.The purpose of accident and incident investigation is to promote aviation safety and to prevent recurrence, not to attribute blame or liability.
4.2 The purpose of the form is to provide investigatory authorities with as complete information on the air traffic incident as possible and to enable them to report back, with the least possible delay to the pilot or operator concerned, the result of the investigation of the incident and, if appropriate, the remedial action taken.The purpose of reporting is to provide investigatory authorities with as complete information on occurrences as possible and thereby enable them to report back, with the least possible delay to parties concerned, the result of the investigation and, if appropriate, the remedial action taken.
4.3 Occurrence information is disidentified and stored in ECCAIRS (European Co-ordination Centre for Aviation Incidents Reporting Systems) database, which is used to monitor the status of aviation safety.

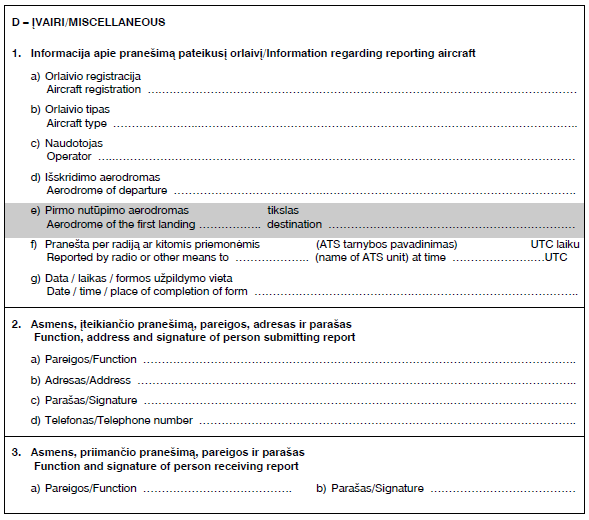

Instructions for the completion of the “Air Traffic Incident Report Form”
Item | |
A | Aircraft identification of the aircraft filing the report. |
B | An AIRPROX report should be filed immediately by radio. |
C1 | Date/time UTC and position in bearing and distance from a navigation aid or in LAT/LONG. |
C2 | Information regarding aircraft filing the report, tick as necessary. |
C2 c) | E.g. FL 350/1 013hPa or 2 500ft/QNH 1 007hPa or 1 200ft/QFE 998hPa. |
C3 | Information regarding the other aircraft involved. |
C4 | Passing distance - state units used. |
C6 | Attach additional papers as required. The diagrams may be used to show aircraft‘s positions. |
D1 f) | State name of ATS unit and date/time in UTC. |
D1 g) | Date and time in UTC. |
E2 | Include details of ATS unit such as service provided, radiotelephony frequency, SSR Codes assigned and altimeter setting. Use diagram to show the aircraft‘s position and attach additional papers as required. |
